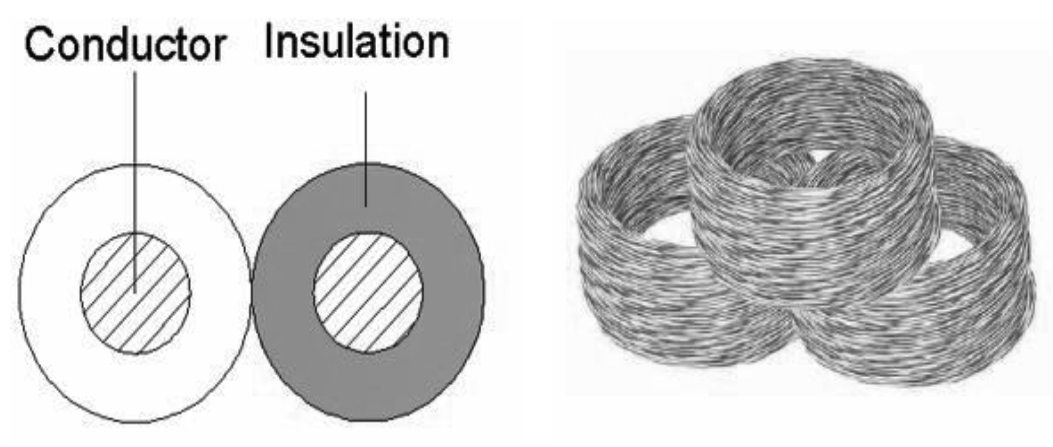

Annealed high conductive Electrolytic grade bare / tinned solid copper of 0.5 /0.6 mm diameter generally conforming to IS:8130-1984
Hard grade specially designed PVC as per Type 2 of IS:13176:1991 suitable for a conductor temperature upto 70ºC
G/WIR-10/03 Sep 2006, CW-1257 / CW-1423
As per standard
100 m / 500 m High conductivity solid annealed bare copper industrial telephone
| Type | Center Conductor | Outer Conductor | Insulation/ Sheath | Outer Diameter | Impedance |
| RG-6 | 1.02mm/ 18AWG ABC/CCS | 34AWG Alu alloy shield with 60% | Gas Inj. Foam PE/ PVC UV Resistant | 6.90mm (approx) | 75 +/- 3 Ohm |
| RG-11 | 1.63mm/ 14AWG ABC/CCS | 34AWG Alu alloy shield with 60% | Gas Inj. Foam PE/ PVC UV Resistant | 10.30mm (approx) | 75 +/- 3 Ohm |
| RG-58 | 0.57mm/ 23AWG ABC/CCS | 0.12mm ABC shield with 65% | Gas Inj. Foam PE/ PVC UV Resistant | 4.95 (approx) | 50 +/- 2 Ohm |
| RG-59 (B/U) | 0.81mm/ 20AWG ABC/CCS | 0.12mm ATC shield with 93% | Gas Inj. Foam PE/ PVC UV Resistant | 6.10mm (approx) | 75 +/- 3 Ohm |
| RG-174 | 0.50mm/ ABC | 0.102mm ABC shield with 65% | Foam PE/ PVC UV Resistant | 2.85 +/- 0.15mm | 50 +/- 2 Ohm |
| RG-213/U (RG-8A/U) | 7/0.75mm ABC | 0.180mm ABC shield with 95% | Foam PE/ PVC UV Resistant | 10.29 +/- 0.15mm | 50 +/- 2 Ohm |
| FEXT at 1MHz | >67 dB/km | Rip cord | Under sheath | 0.475mm apx | 0.475mm apx |
| RG-217 A/U | 2.69 +/- 0.03 ABC | 0.180mm ABC Double Shield | Foam PE/ PVC UV Resistant | 13.84 +/-0.25mm | 50 +/- 2 Ohm |
| RG-316 | 7/1.70 SPC | 0.102mm SPC Shield 95% | PTFE/FEP | 2.50 +/- 0.05mm | 50 +/-2 Ohm |
