Rs 485 Cable

Product Detail

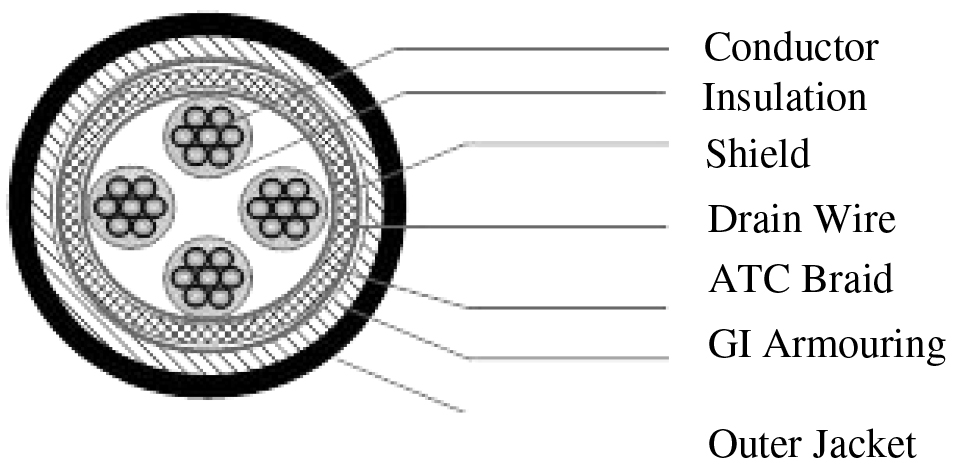

32 AWG stranded (7x32) TC conductors, polyethylene insulation, twisted pairs, overall Alu-mylar (100% coverage) + TC, Inner Sheath, GI Armour & Overall Jacket

Size 1Pair to 4Pair
18AWG, 22AWG, 24AWG/ 0.22sq, 0.32sq, 0.35sq, 0.5sq, 0.75sq, 1.0sq, 1.5sq
Conductor Fine Stranded Tinned Copper Conductor
Insulation PVC , PE , PP Color or number coded.
Fillar PVC , PE , PP (optional)
Shield Shield with aluminum - mylar tape 100% coverage
Drain Wire 7/20 AWG or 7/28AWG Stranded Tinned Copper Conductor
Braiding Tinned copper Conductor braid shield 90% coverage.
Inner Sheath PVC, LSZH (optional)
Armouring Galavanised round wire armouring (optional)
Outer Jacket PVC, LSZH
