LAN Cable

Product Detail

OCTEL brings to you LAN cables best suited to your specific Applications. The Cables are verified to the performance category 5e/6 requirement to TIA/EIA 568 - A & UL 444 for Transmission performance.

OCTEL LAN cables are suitable for Voice, Data, Video and Low Voltage Control, it is suitable for all LAN topologies including Horizontal and Vertical distribution plenum and Riser. The conductor is made of Electrolytic plain annealed solid copper of size 0.5 mm, High quality Polyethylene Insulated with suitable colour code, twisted pair, Unshielded light grey PVC jacketed with improved fire characteristic meeting requirements of IEV -332- high oxygen and temperature index. The ISO - 9001 certification ensures the quality of cables and its intended performance.

Salient Features:-
  • Low attenuation and crosstalk
  • Low Structural return Loss
  • ISO Verified cables
Type Construction Conductor Construction DC Resistance Overall Diameter Available Length :305 Mtr, 100 Mtr and as per customer requirement

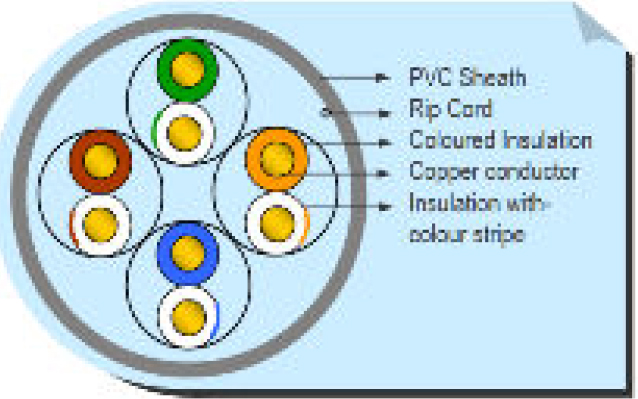

CAT-5e UTP CABLE Solid Bare Copper HDPE Insulated 4 Pair PVC Sheathed LAN Cable 24 AWG Solid 9.38 Ohm/ 100Mtr (max) 5mm (nom)

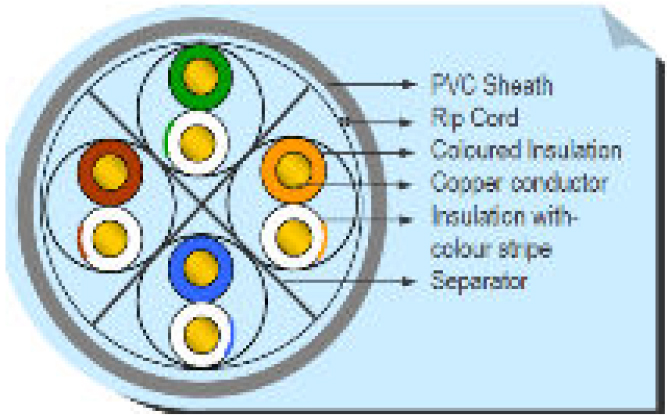

CAT-6 UTP CABLE Solid Bare Copper HDPE Insulated 4 Pair with cross dummy PVC Sheathed LAN Cable 23 AWG Solid 9.38 Ohm/ 100Mtr (max) 6mm (nom)
